Zodiac Exo iQ - 10

Why choose the eXO® iQ saltwater chlorination modification?
With the automatic saltwater treatment unit eXO® iQ and the pH Link or Dual Link modules it is possible to monitor and manage pH or pH/ORP values and, additionally, connect a filtration pump and up to two additional allied systems such as lights, attractions, etc. All parameters and allied systems can be monitored and controlled via the internet in the iAquaLink app.

Zodiac® EXO iQ is a system that can percentually generate chlorine itself (electrolysis of salt). The EXO iQ unit can be expanded with an additional module “pH Link” or “Dual Link.”

• pH Link enables regulation and dosing of pH
• Dual Link enables regulation and dosing of pH and regulation of ORP
• All water quality control is concentrated in a single interface: pH, chlorination, additional equipment (filtration pump, lighting...)
• The eXO solution with a long-life electrode and high-quality probes will ensure optimal water quality under all conditions. Proof of reliability is the three-year unconditional warranty on the electrolyzer. 3 years unconditional warranty (device), 2 years (pH probe), 1 year (Redox probe and consumables)
• With the iAquaLink™ app you have remote and real-time access on your smartphone or tablet (Android or iOS) to information about the equipment and water quality in your pool. Connected to the eXO® solution.
• You can monitor the current water parameter status, change desired parameters, and control allied devices (lights, filtration, counter-current, ...)

To this unit you can connect:

• Filtration pump
  • Single-speed (any)
  • Multi-speed - ZODIAC FloPro VS


• AUX1 - Lights
  • Can operate any WHITE lights - ON/OFF
  • Can operate RGB lights (ZODIAC) - the program is preset for ZODIAC NL light color schemes

• AUX2 - heat pump
  • Heat pump is controlled via a contactor (to be purchased separately)
  • You can set heating according to filtration times or enable "HEATING PRIORITY" - every 120 minutes the heat pump starts the filtration circuit, measures the water temperature, and if the temperature is below the desired, the filtration pump remains in operation as long as necessary to heat the pool.

Recommended pool volume - max 40 m3 -> with a minimum filtration time of 8 h/d.

Zodiac® EXO iQ 10 has IP43 protection and a maximum chlorine production of 10 g/h for private pools up to 40 m3 (8h/d).

Description:

• Backlit 4-line LCD display
• User interface in CZ, EN, DE, ...
• “BOOST” function (100% power - 24h) and “LOW” function (10% power - 24h)
• Flow control valve
• Timer:
  • Setting chlorine production time (Two timers can be set)
  • Setting for single-speed pump (2 timers)
  • Setting for multi-speed pump (4 timers)
  • 1 timer for additional allied devices
• Polarity reversal every 5 hours (can be set from 2h to 8h)
• Temperature sensor to protect the electrolytic cell
• The unit should be permanently connected to the power supply (for proper timer function)
• It is recommended to keep the unit permanently connected to the power supply (to power the battery that maintains the timer memory in case of power outage)

Warranty period for probes (unconditional) -

• ORP probe - 1 year (not included in the package - to be purchased DUAL Link)
• pH probe - 2 years (not included in the package - to be purchased pH Link or DUAL Link)

In the package:

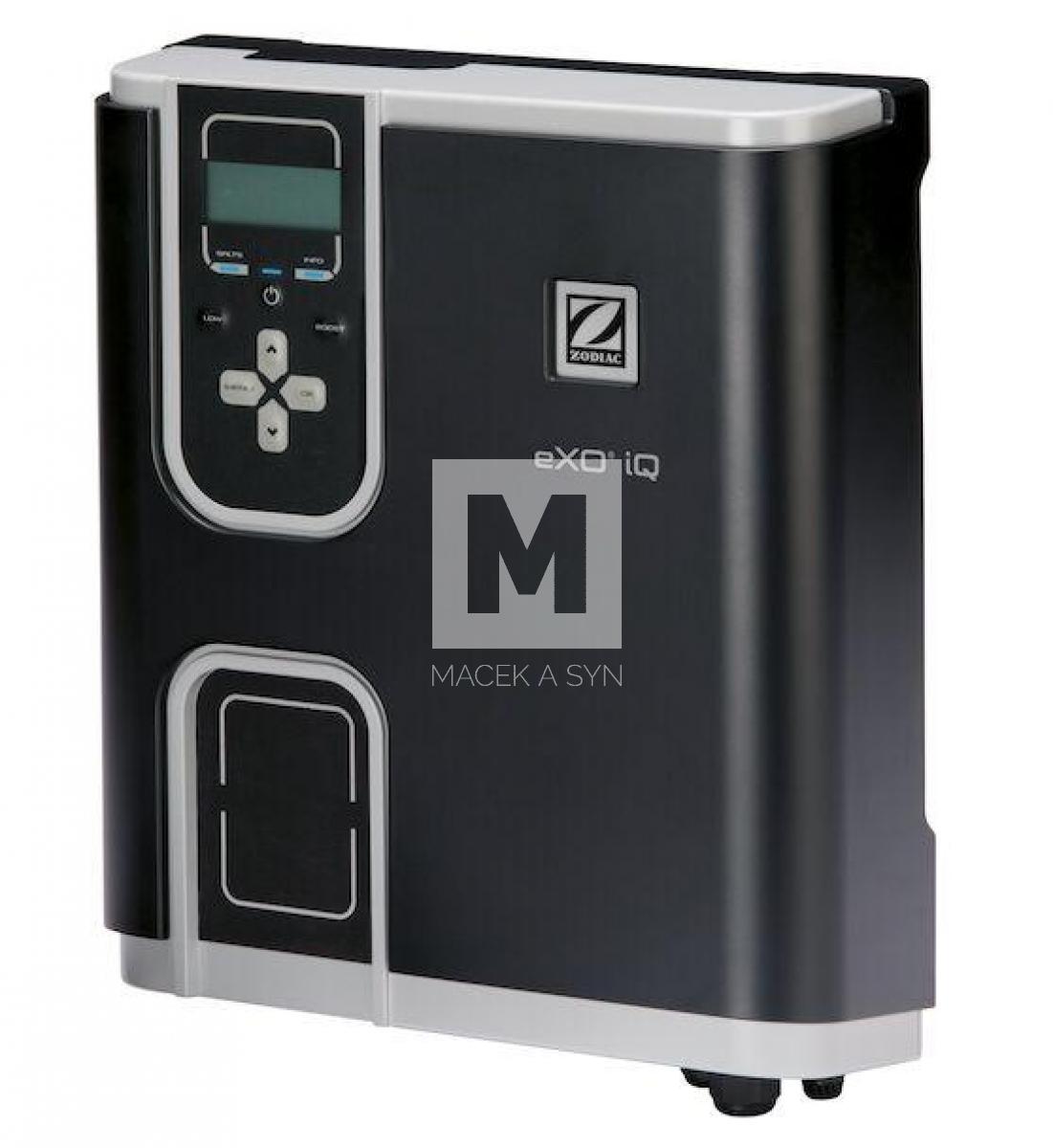

• EXO iQ unit
• Housing
• Wall mounting kit
• Flow detection kit - flow control valve
• Temperature sensor kit
• Reduction set



Technical parameters

Product type:	Saltwater treatment
Recommended pool volume:	40 m3
Chlorine production:	10 g/h
Min. flow:	5 m3/h
Max. flow:	18 m3/h
Minimum required salt level:	3.3 g/l
Optimal required salt level:	4 g/l
Max. temperature:	40 °C
Max. operating pressure:	2.75 bar
Power consumption:	200 W
Cable length:	1.8 m
Digital display:	Yes
Extendability:	Yes
Power supply:	230 V AC
