Winner Pump - 100 m
Voltage 230V - Type M, for saltwater and seawater
Code: 573WIN100M
Producer: VAGNERPOOL
Last 1 pc(s) in stock
FREE SHIPPING GLS
485,66 €
394,85 € exc. VAT
394,85 € exc. VAT

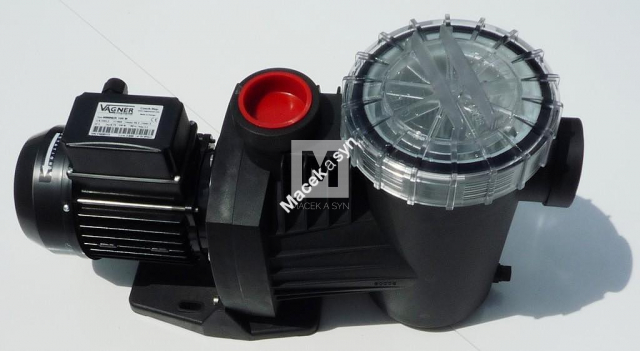

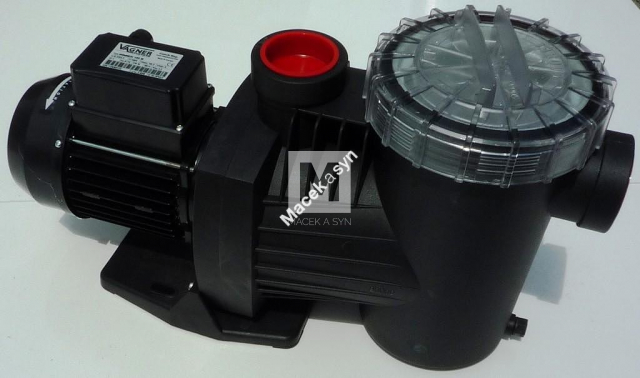

Self-priming pump with high-capacity pre-filter

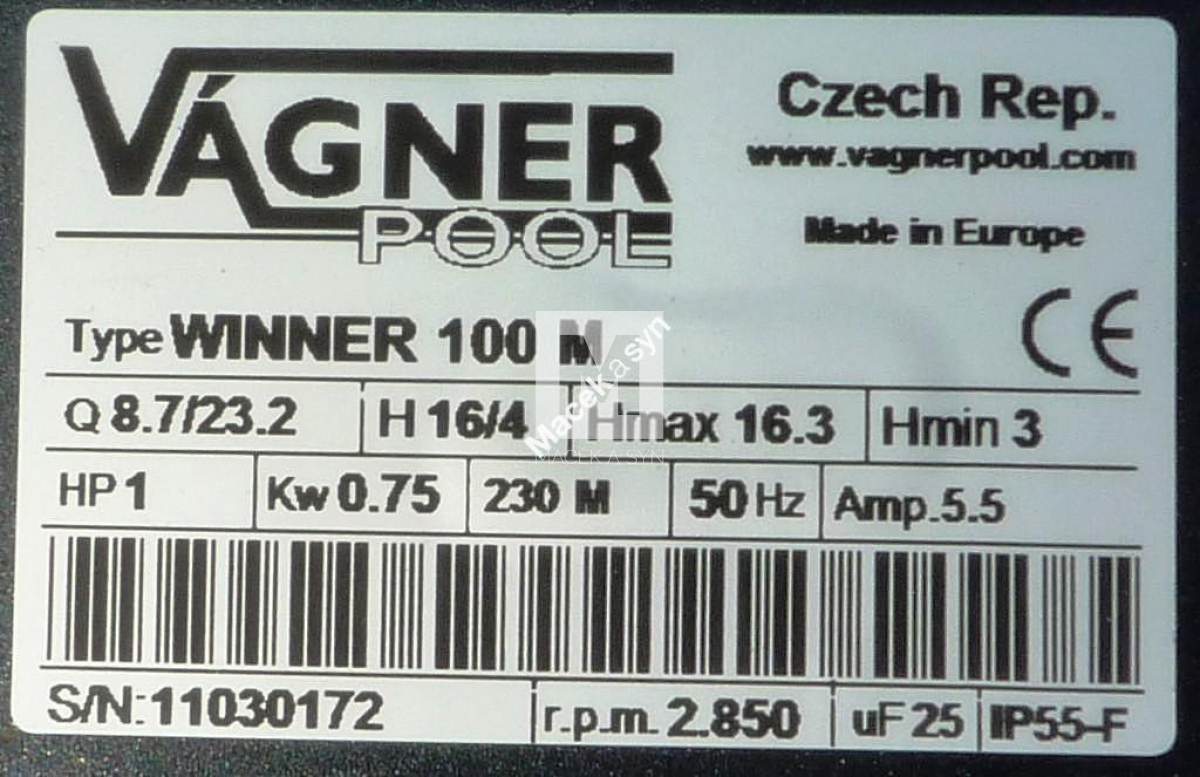

- Each unit is tested (it has its own traceable "birth" sheet with measured technical data attached to the back of the manual)
- Pump body and diffuser made from glass-fiber-reinforced polypropylene provide exceptional durability

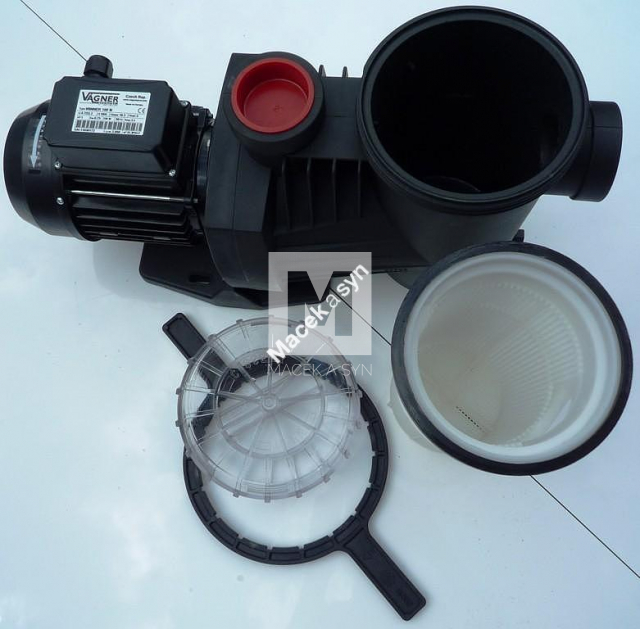

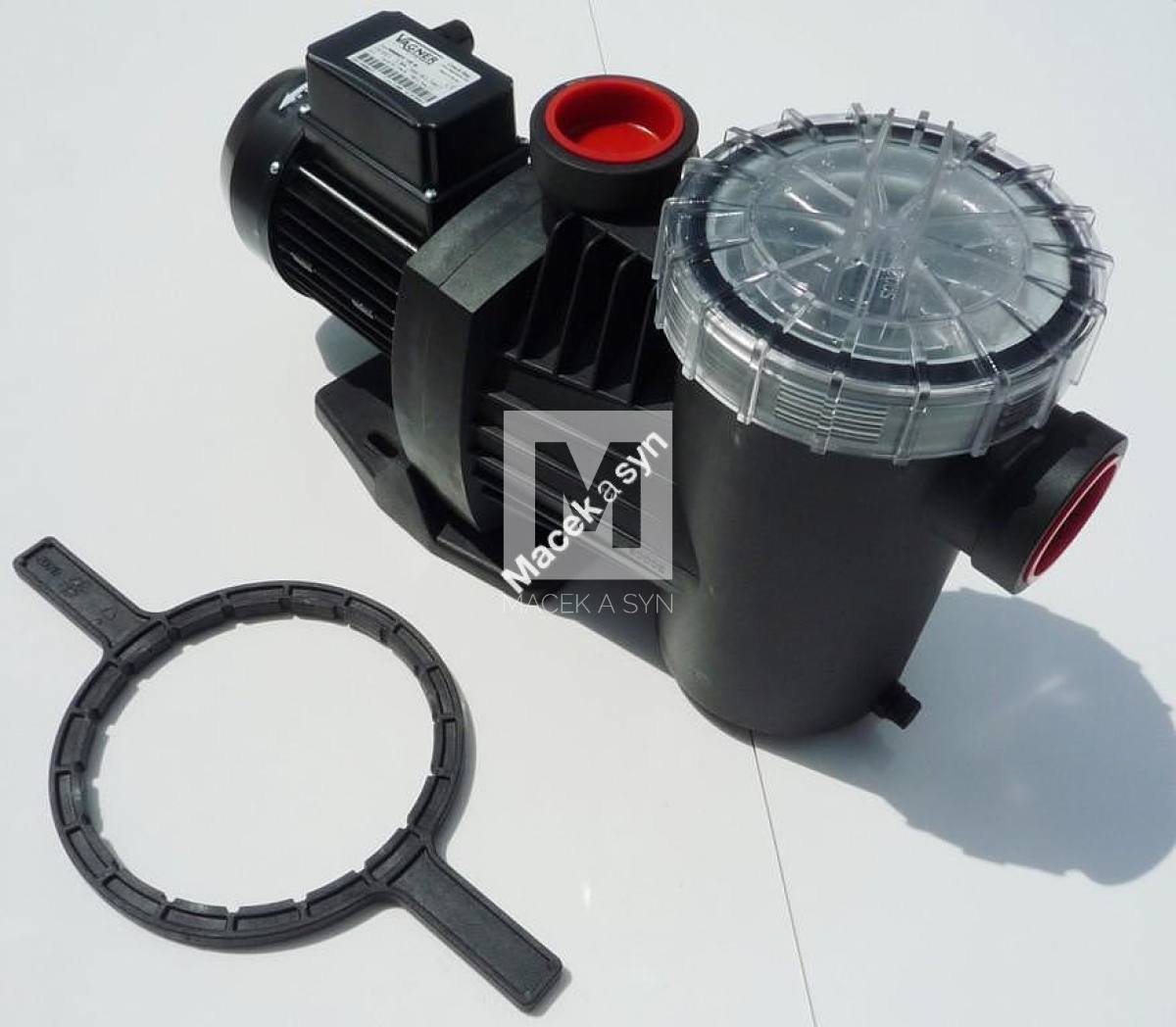

- A two-hand grip key ensures easy loosening and tightening of the transparent pre-filter cap
- To achieve a perfect seal of the high-capacity pre-filter, the gasket is mounted directly on its basket
- The sealing segment of carbon-ceramics and stainless steel AISI 316 is housed in the turbine on a bronze thrust ring
- The stainless steel (AISI 316) pump shaft is not in contact with the pumped water
- Suitable for saline and seawater
- Lifetime-lubricated motor bearings for long life and quiet operation
- Lower operating temperature of the motor
* Flow rates are given in m3/h at 10 m water column

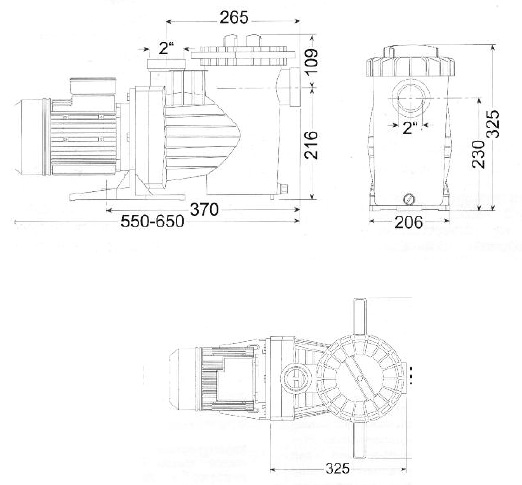

Dimensions of Winner M pumps (mono):
The pump does not include a power cable.
Technical parameters
| Product type: | Filtration pump |
| Sealing segment material: | Carbon-ceramics |
| Motor protection: | IP 55 |
| Performance: | 0.75 kW |
| Output current: | 5.5 A |
| Rotations: | 2850 rpm |
| Flow rate: | 18 m3/h |
| Input power: | 1.06 kW |
| Voltage: | 230 V |
| Motor bearings with lifetime lubrication: | Yes |
| Inlet / outlet connection - gluing: | 63/63 mm |
| Self-priming: | Yes |
| Each unit tested: | Yes |
| Pre-filter basket material: | Plastic |
| Turbin material: | Plastic |
| Max. working pressure: | 2.5 bar |
| Pre-filter: | Yes |
