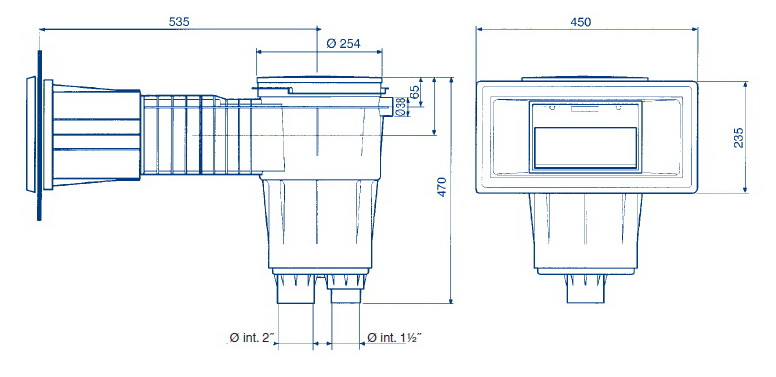

Skimmer 17.5 L, quarter-turn lid p/f, long and conical neck

• all non-embedded parts of skimmers are UV stabilized
• recommended flow rate 7.5 m3/h
• made of white ABS
• they have doors with a float and a shut-off for flow regulation
• suction connection has internal thread 1 1/2" (6/4")
• possibility to connect to discharge with internal thread 2"
• top connection to overflow at high water level in the pool with internal diameter D 32 mm
• top cover with safety lock in the central part
• telescopic mounting of the top cover allows adjusting the height with paving or with surrounding stone
• in the bottom part of the skimmer is embedded a removable basket with a bayonet mount for catching coarse dirt
• we recommend installing 1 skimmer for every 25m2 of water surface

Designed for:

• concrete pools with heavy lining (welding)
