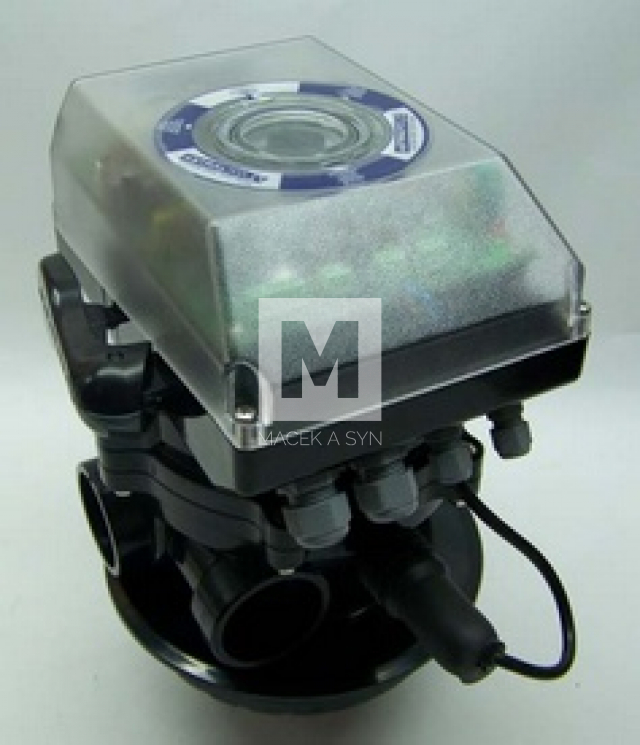

Six-way automatic valve 6/4˝ VRAC FLAT - Top

• cheaper variant of the automatic control valve

The automatic valve is controlled by an adjustable pressure switch (0,3 - 3,5 kg/cm², from factory set to 1,5 kg/cm²), which, when the filter is clogged with impurities, sends a signal to perform backwash and then the sedimentation rinse of the filter.The length of the flush can be set with a potentiometer on the electronic board from 1 to 6 minutes, the length of the settling flush is a fixed 30 seconds. If needed, a special button can be used to set the valve to drain water from the pool. The connection to the filtration pump ensures its shutdown with every valve reconfiguration.

• Electrical voltage - 230V/50 Hz
• Ingress protection IP-65
• power consumption 14 W
• max. pressure loss 0,66 bar
• nominal flow rate 12 m³/h
• max. pressure 3,5 bar
