San Sebastian filtration vessel - 640 - 1m sand bed
deep bed with a filter cross
Code: 5114640SSB
Producer: VAGNERPOOL
To order
We dispatch: on request (ask for availability)
1 463,49 €
1 189,83 € exc. VAT
1 189,83 € exc. VAT
.jpg)
.jpg)

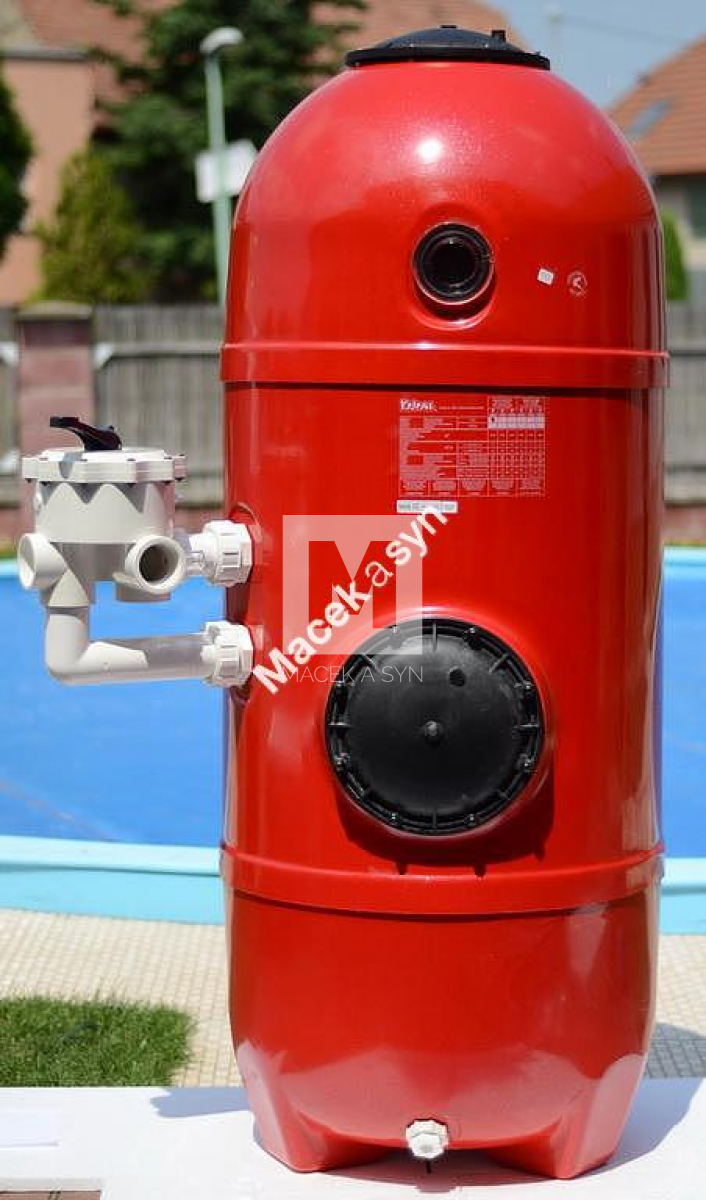

San Sebastian Deep-Bed Sand Filtration Tank:
- is made of polyester and fiberglass-reinforced plastic, with side walls reinforced by fiberglass fibers.
- model SSB with filtration cross, sand layer 1 m.
- SSP model with jet bottom available.

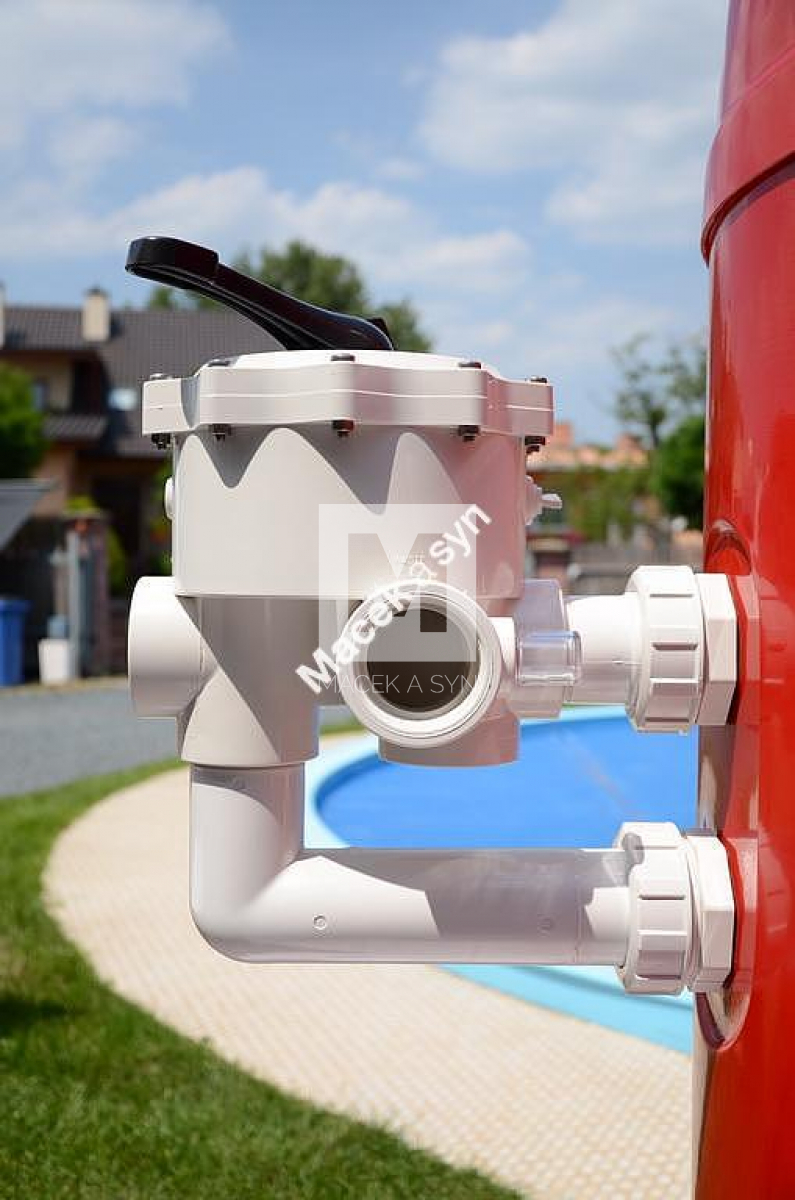

- includes a 6-way valve 2" in.
- max. operating pressure 1.5 bar
- maximum pressure 2.5 kg/cm2
- test pressure 3.75 kg/cm2
- operating temperature 1–40 °C
- Ø 640 mm
- amount of filtration sand 475 kg
- warranty 5 years
Technical parameters:

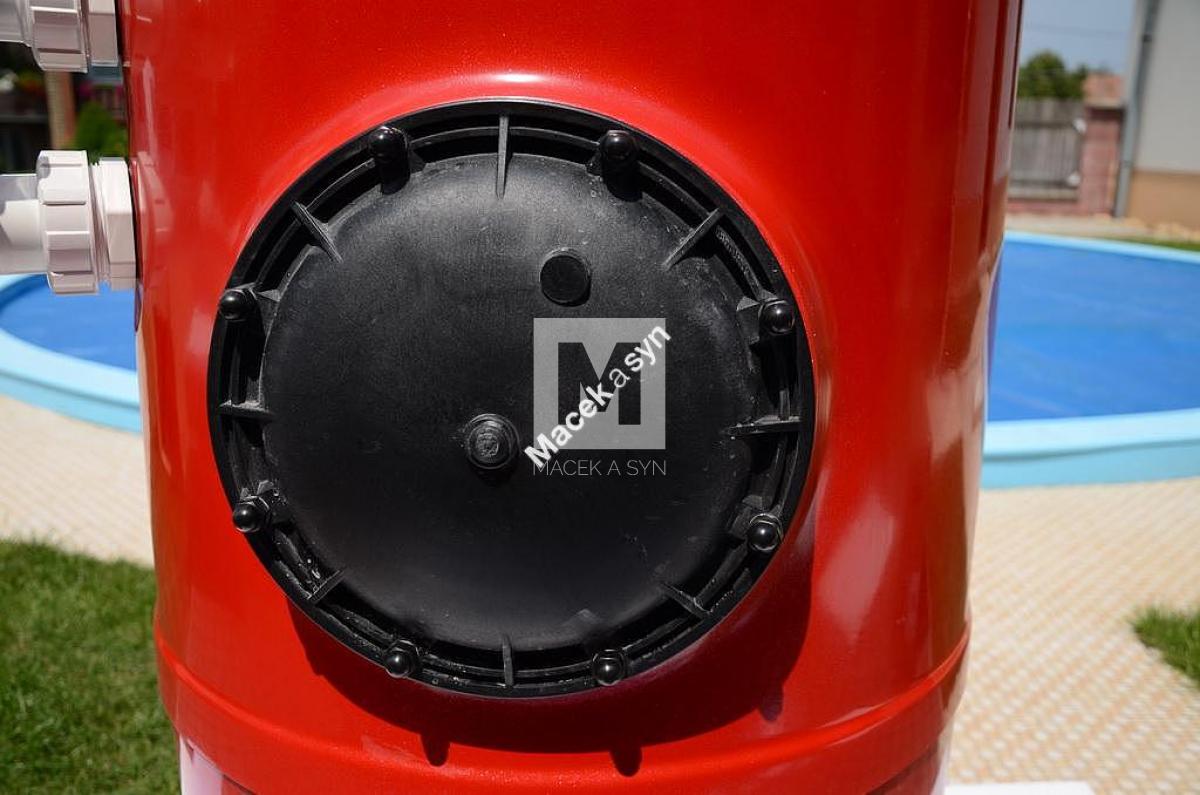

| Side opening: | YES |

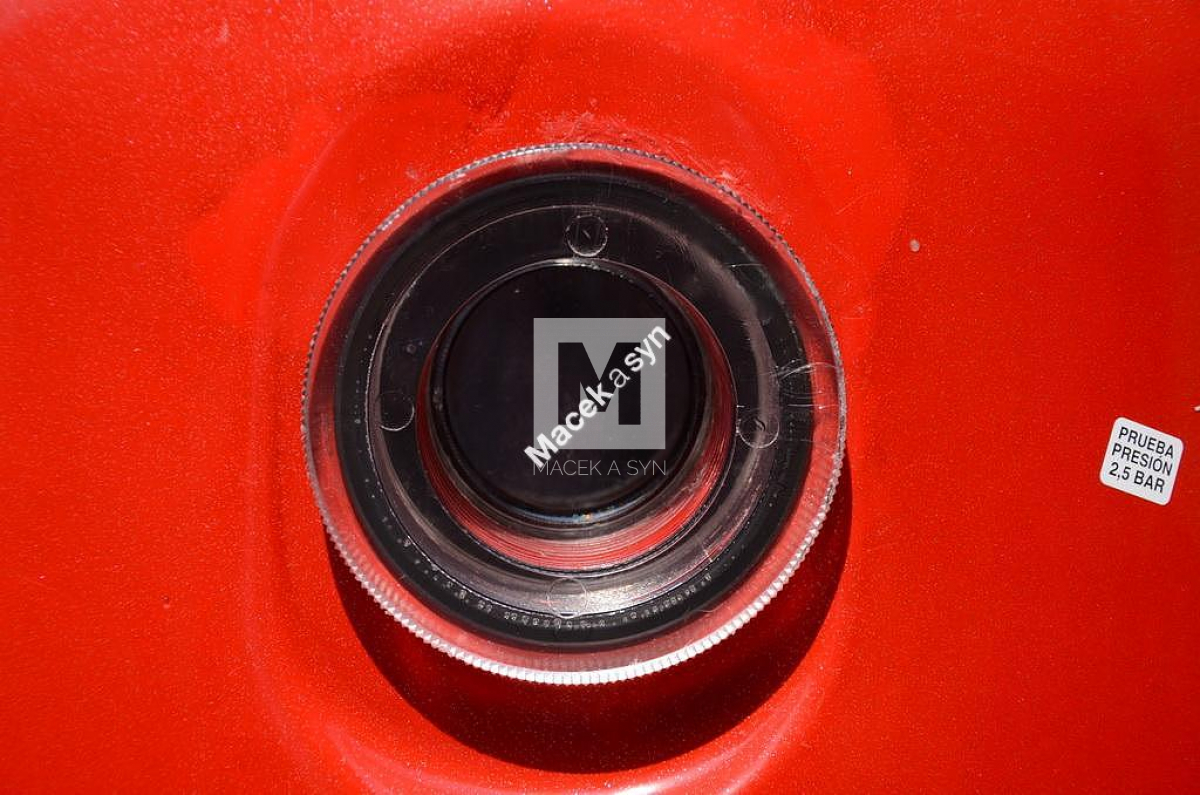

| Side sight glass: | YES |
| Filtration rate: | 50 m³/h/m² |
| Filtration technology ClearPro: | NO |
| Depth of filter bed: | 1 m |
| Weight [kg]: | 52 |
| Tank material: | polyester and fiberglass |
| Max. operating pressure [bar]: | 1,5 |
| Fill quantity [kg]: | 475 |
| Tank diameter [mm]: | 640 |
| Flow rate [m³/h]: | 16 |
