Roll grate height 22mm - Width 195mm
Code: 28656
Producer: Astralpool
Over 100 pc(s) in stock
1,01 €
0,82 € exc. VAT
0,82 € exc. VAT
.jpg)
- grids are made of UV-resistant white polypropylene

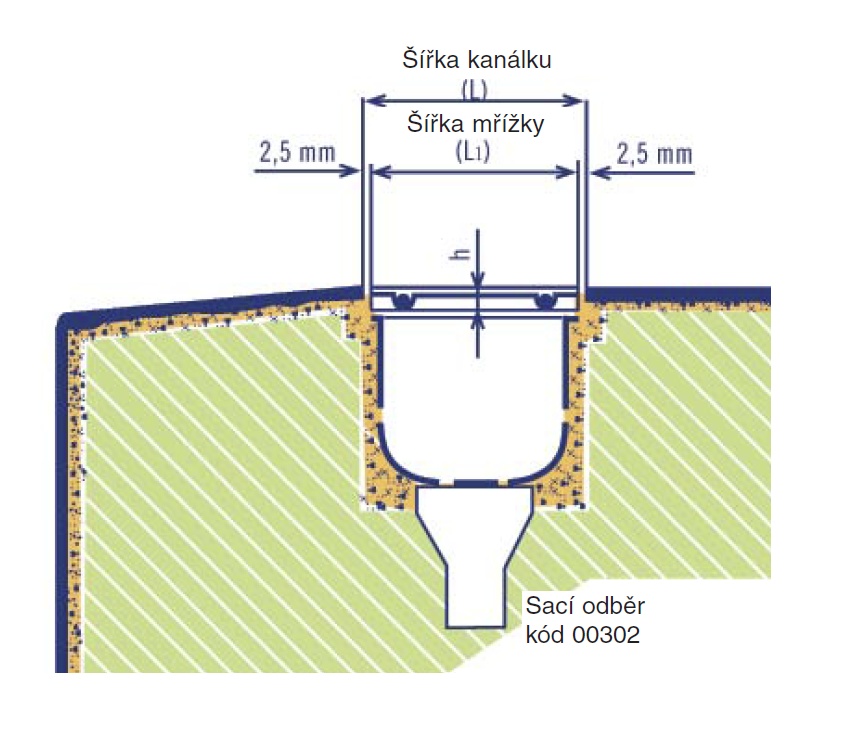

- for all grids, account for a channel 5 mm wider than the grid to prevent deformation due to thermal expansion
- segments are joined in the central part by inserting
- 43 segments = 1m
- width 195 mm, height 22 mm
- height 22 mm is only at the edges of the grid, in the middle the width is about twice as wide for strength reasons
| channel width (mm) | width of the grid (mm) |
| 200 | 195 |
| 250 | 245 |
| 300 | 295 |
| 350 | 345 |
grid height (h) varies:
- longitudinal grids h = 24 mm
- transverse grids h = 22 mm or 35 mm
Segments are joined in the central part by insertion. 43 segments = 1m
Pack contains 450 pcs, package weight 19 kg.
