Nilo Filter 650mm, 15m3/h, 1m, Connection 1.5" Eco"
Laminated filter; Vessel material: polyester and fiberglass ; Fill quantity: 480 kg; Vessel diameter: 650 mm; Connection (internal): 1.5 in; Max. operating pressure: 2.5 kg/cm2; Valve type: 6-way side; Valve is not included
Code: 5FIN065010E
3-5 pc(s) at the supplier
Dispatch: within 2 - 4 working days
1 846,49 €
1 501,21 € exc. VAT
1 501,21 € exc. VAT

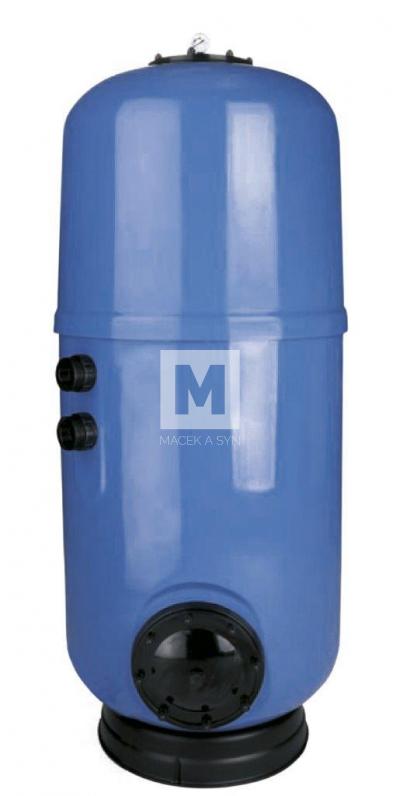

Laminate/Layered Filter Series Nilo Eco
- is manufactured by spraying polyester and fiberglass layers with a glossy surface finish.
- Valve is not included in the package
- High-strength polyester base
- The body consists of only two parts
- The exterior surface of the filtration is coated with a gel coat
- Plastic lid
- Sand outlet at the bottom of the filter with a diameter of 200 mm
- Internal components made of PVC
- Manual drain valve with 1" valve
- Maximum operating temperature 40 °C
- Ability to view the filtration

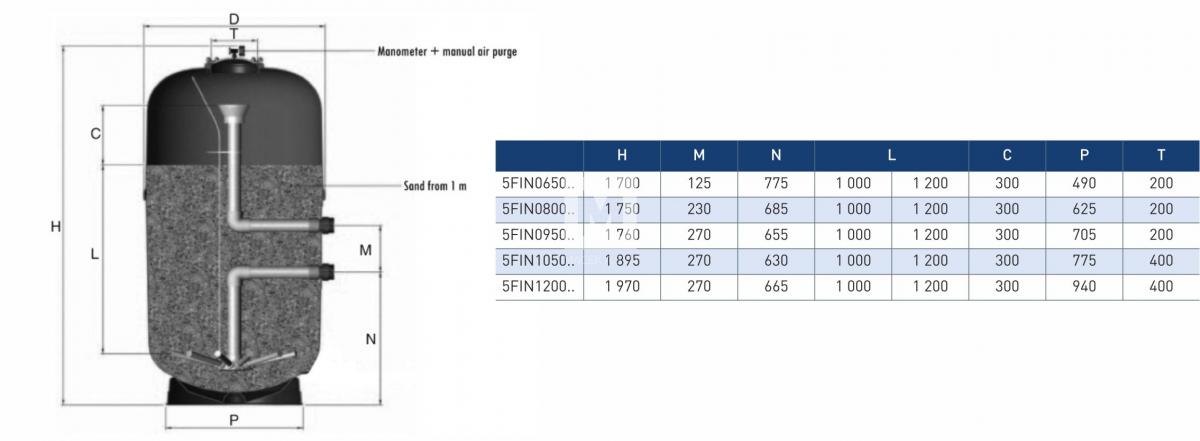

- Diameter D 650, option for jetting or collector bottom
- Option for filter bed height 1/1.2 m (L = 1000/1200 mm)
- Maximum operating pressure 2.5 kg/cm²
- Test pressure 3 kg/cm²
| Product type: | Laminate filter |
| Vessel material: | polyester and fiberglass |
| Fill quantity: | 480 kg |
| Vessel diameter: | 650 mm |
| Connection (internal): | 1.5 "in |
| Max. operating pressure: | 2,5 kg/cm2 |
| Valve type: | 6-way side |
| Filtration rate: | 50 m3/h/m2 |
| Depth of filter bed: | 1 m |
| Max. operating temperature: | 40 °C |
| Base: | Yes |
| Pump flow: | 15 m3/h |
| Additional information: | Valve is not included in the package |
