Kontrol K800 PC Station - PH + FCL, without pumps
free pH/Cl measurement
Code: 92K8007
To order
We dispatch: on request (ask for availability)
5 181,87 €
4 212,90 € exc. VAT
4 212,90 € exc. VAT
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

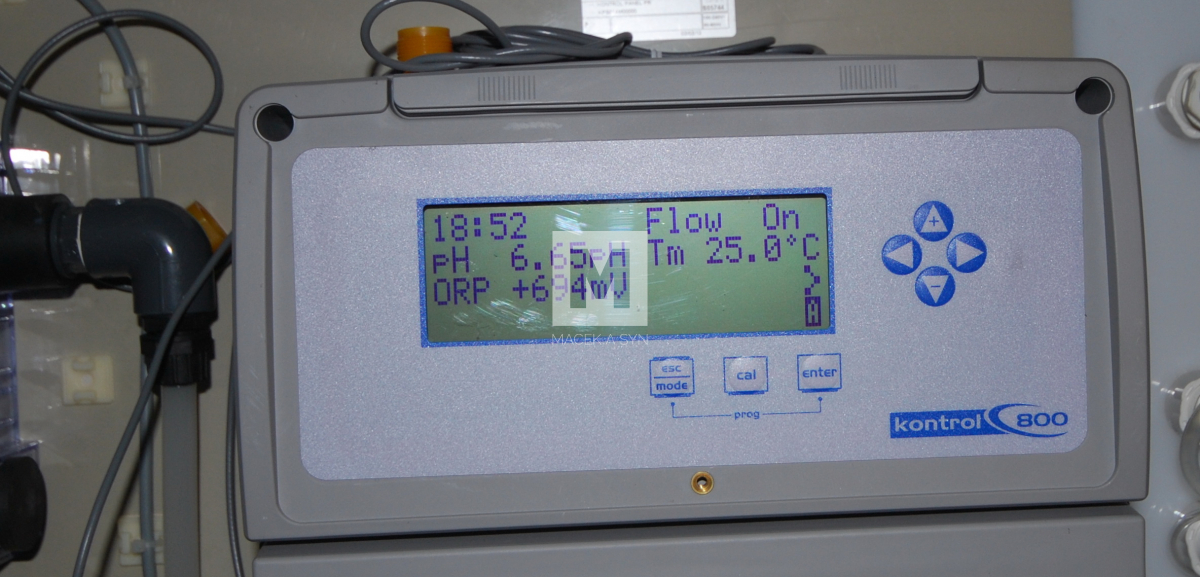

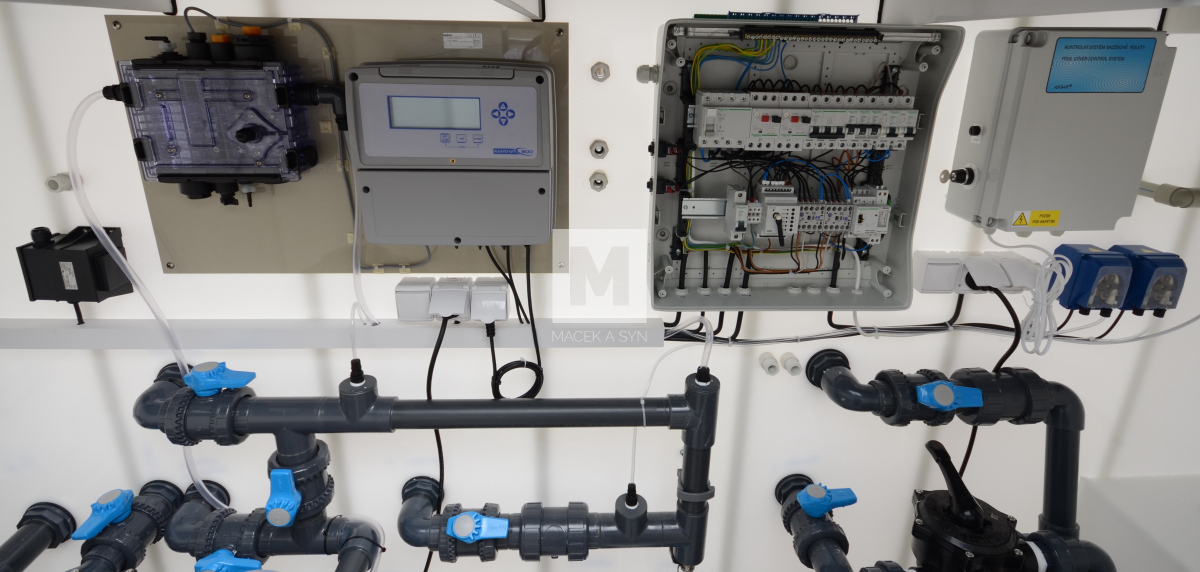

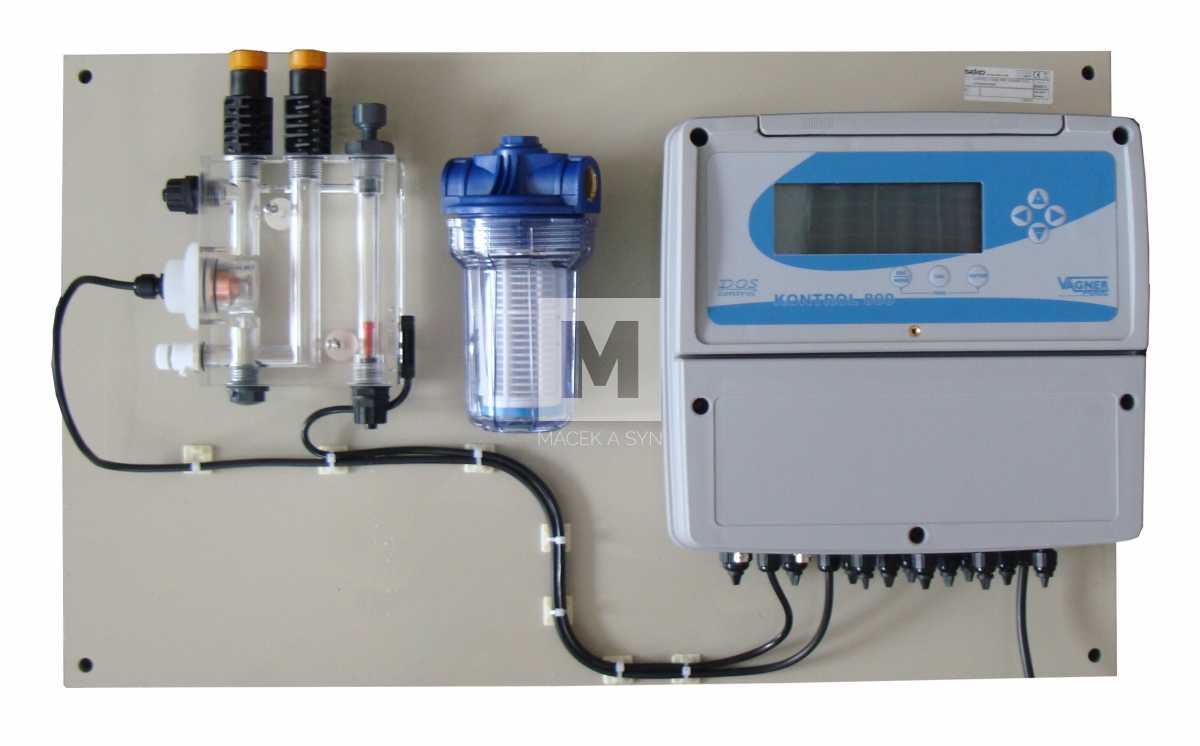

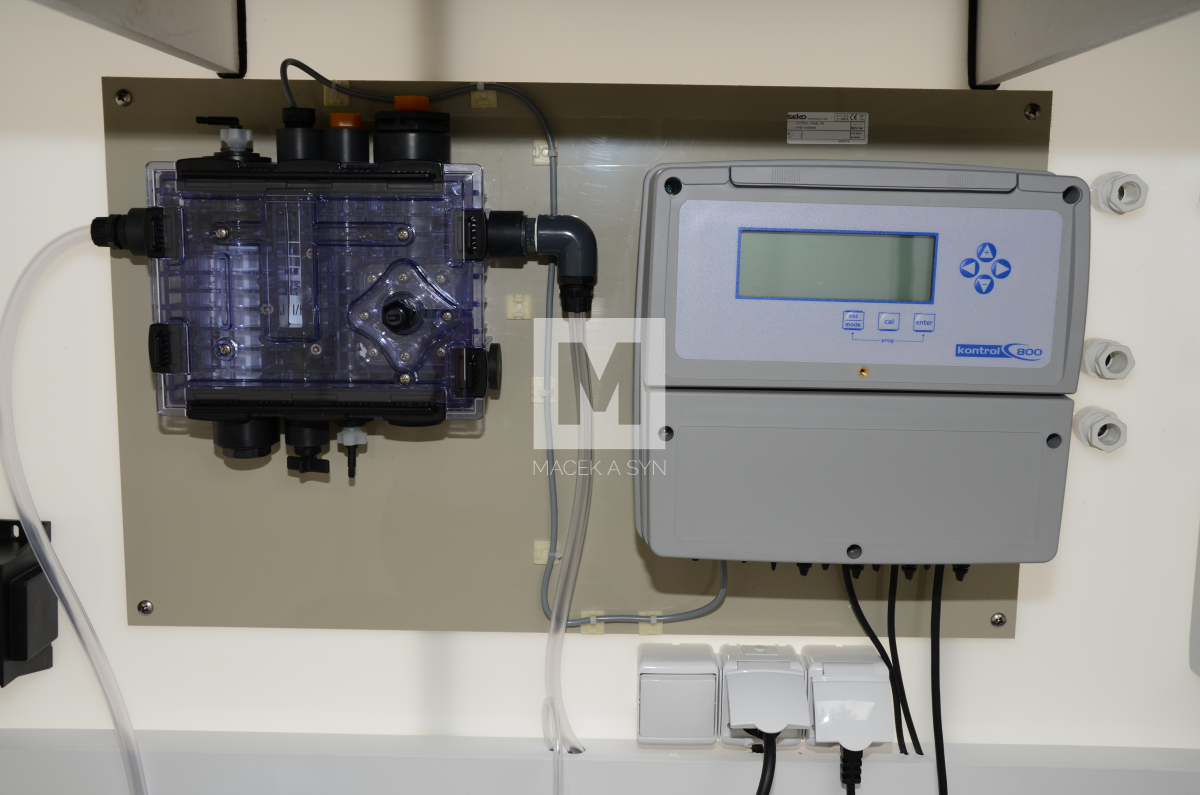

Multi-parameter device is a compact and easily adjustable unit with a four-line display. The electronic measuring system Control 800 is mounted on a flow-control valve board, on which measuring probes and a filter are installed. The PVC base plate simplifies overall wall mounting. The unit is connected between the filter pump and the sand filter. After passing through the unit, the measured water returns to the pool system downstream of the sand filter.
Technical data

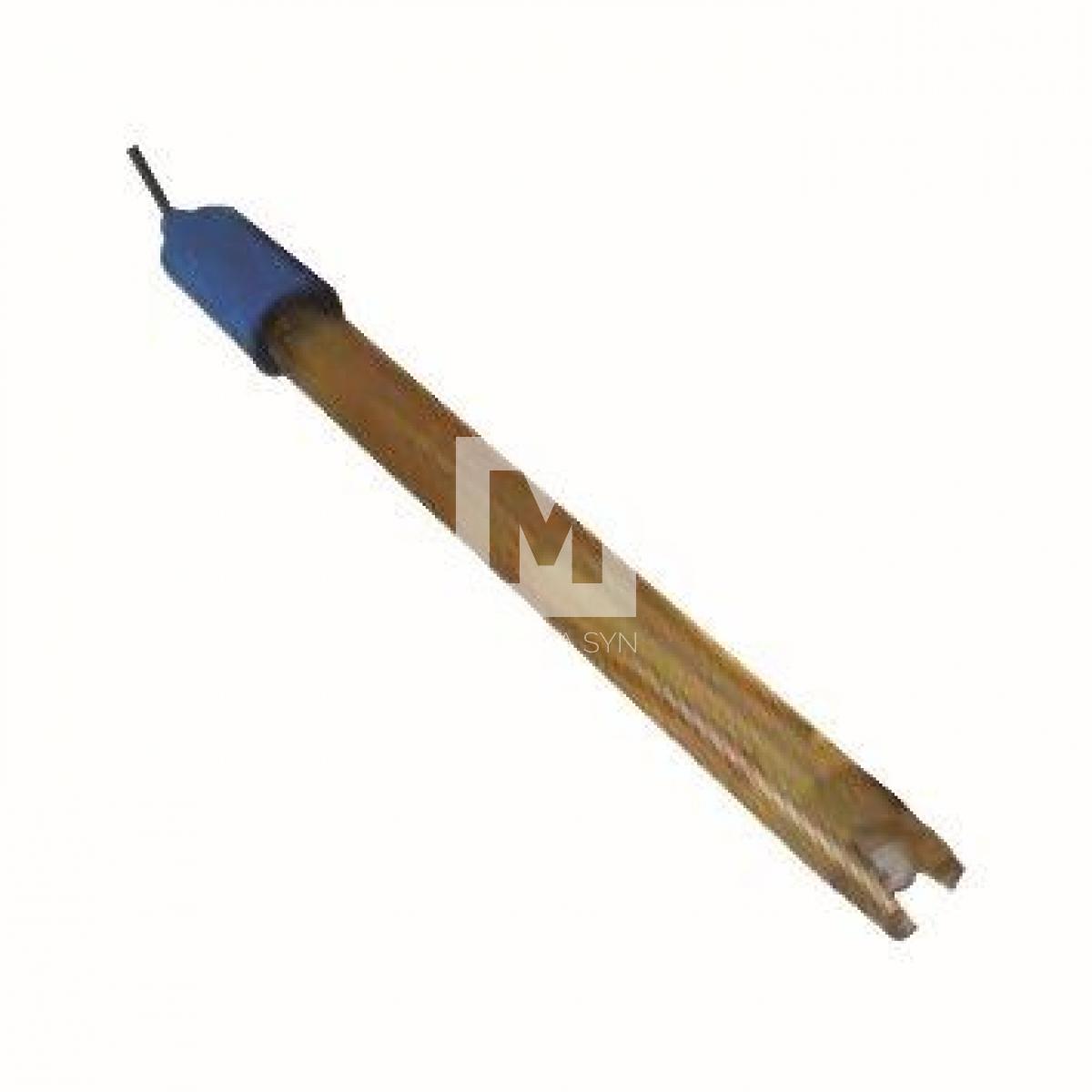

| Measures and doses pH (pH probe 0.00 ÷14.00 pH) |

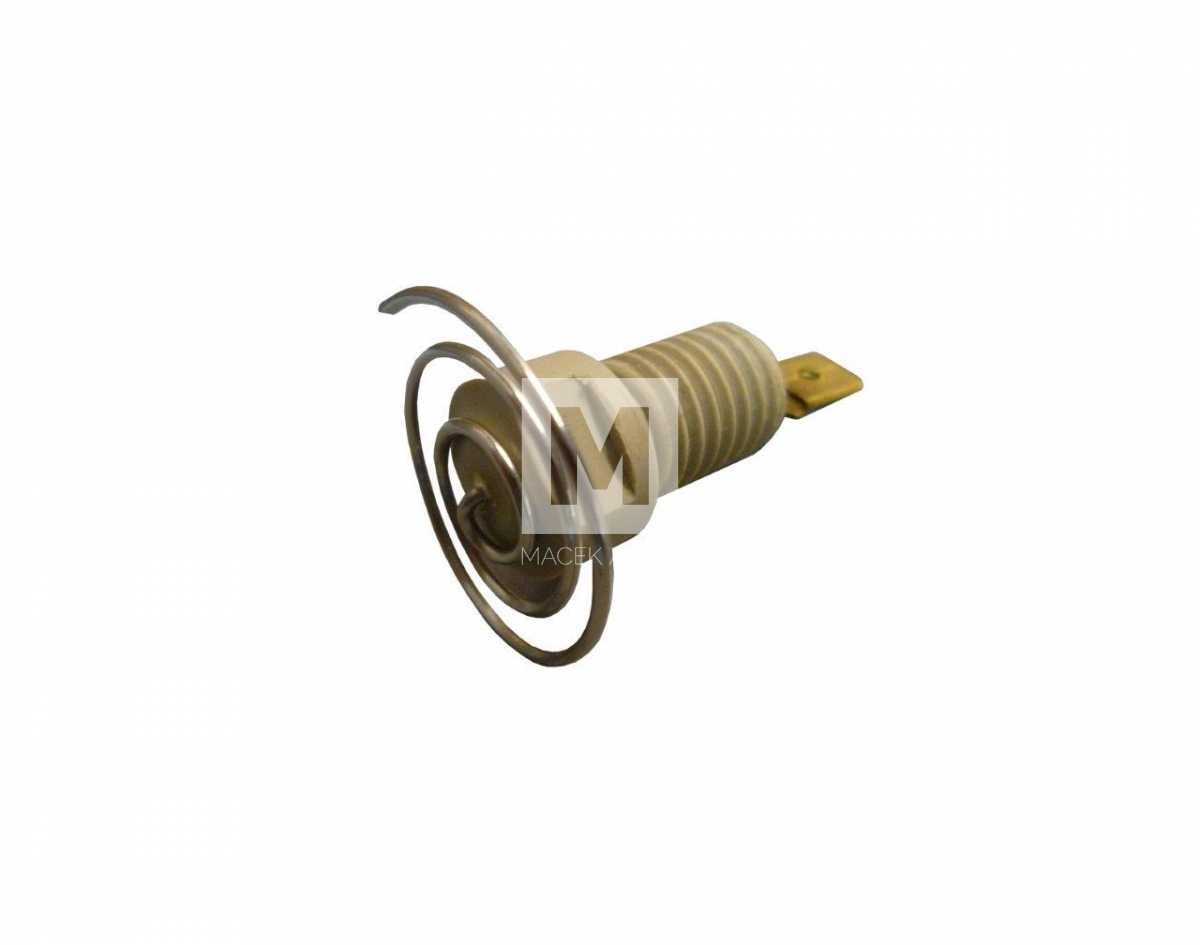

| Measures and doses free chlorine (free chlorine probe 0.00÷5.00 ppm) |

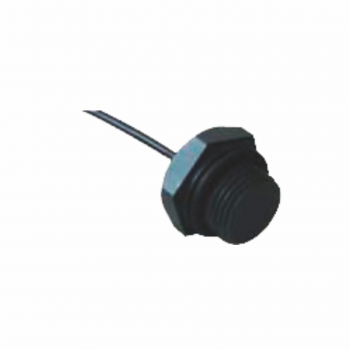

| Temperature probe (0÷100 ºC) - available on order |

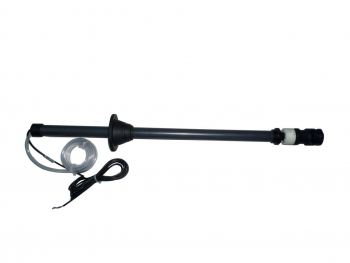

| Two probe inputs for chemical product levels |
| Control unit provides the following outputs: |
| - Four relays with power. Max. 3 A/250 V AC |
| - Two relays with dry contact |
| - Four 4–20 mA current outputs |
| - Four frequency outputs |
| Input and output tube 8 x 12 mm |
| Pressure 3 bar |
| Temperature 50 ºC |
| Power supply: 230 V, consumption 15 W |
| Temperature compensation: in the range 0-125 ºC, manual/automatic (temperature probe on order, not included in the base station) |
| Setpoint regulation: ON/OFF, or pulsed (slowing dosing as it approaches the set value) |
The basic kit of the Control 800 station can be freely expanded with:
- Membrane probes
- Calculation of bound chlorine
- Software for direct control from a PC
- Software for control from a mobile phone
- SD card for data storage
