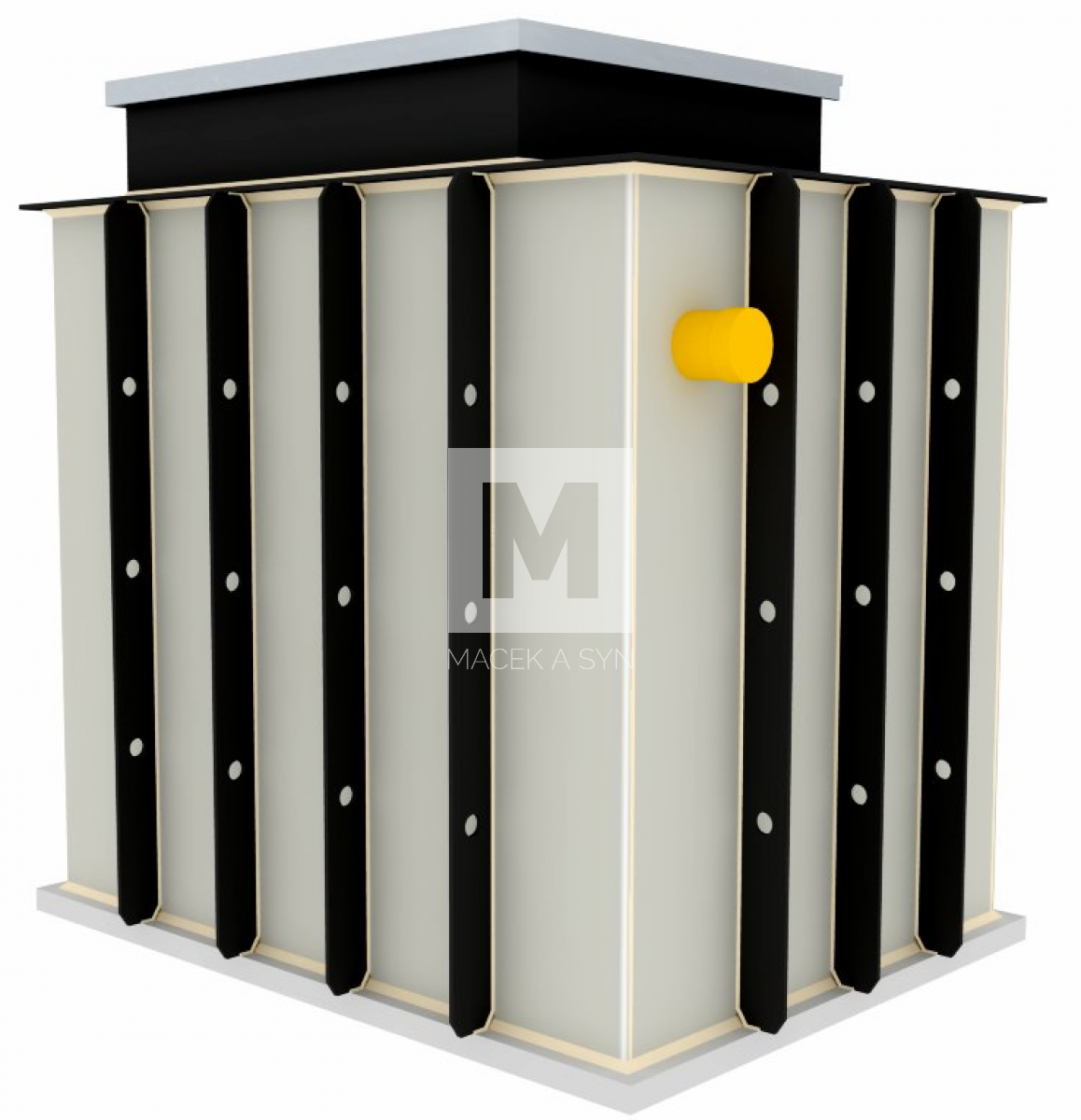

Filtration shaft, high - 1,6 x 1,2 x 1,5m
Height 1,5m. Inlet 110 x 90cm
2 235,50 € exc. VAT

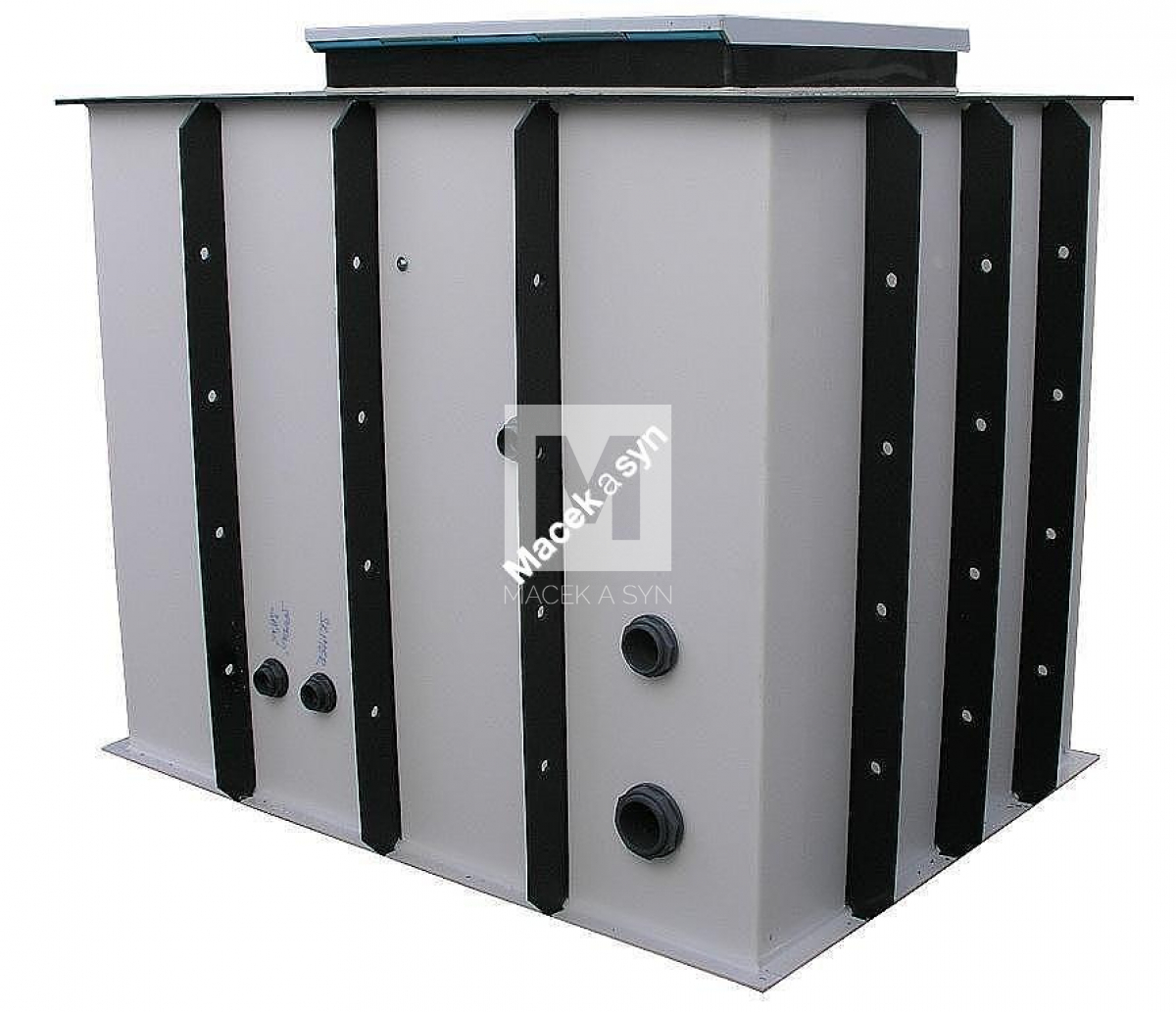

The shaft is made of 10mm thick polypropylene. The shaft can be upgraded at an additional cost with a 220 V socket and a switch.
The shaft lid (cover) is walkable, not movable.
The shaft is watertight; all penetrations must be made using watertight bushings (not included in the price).

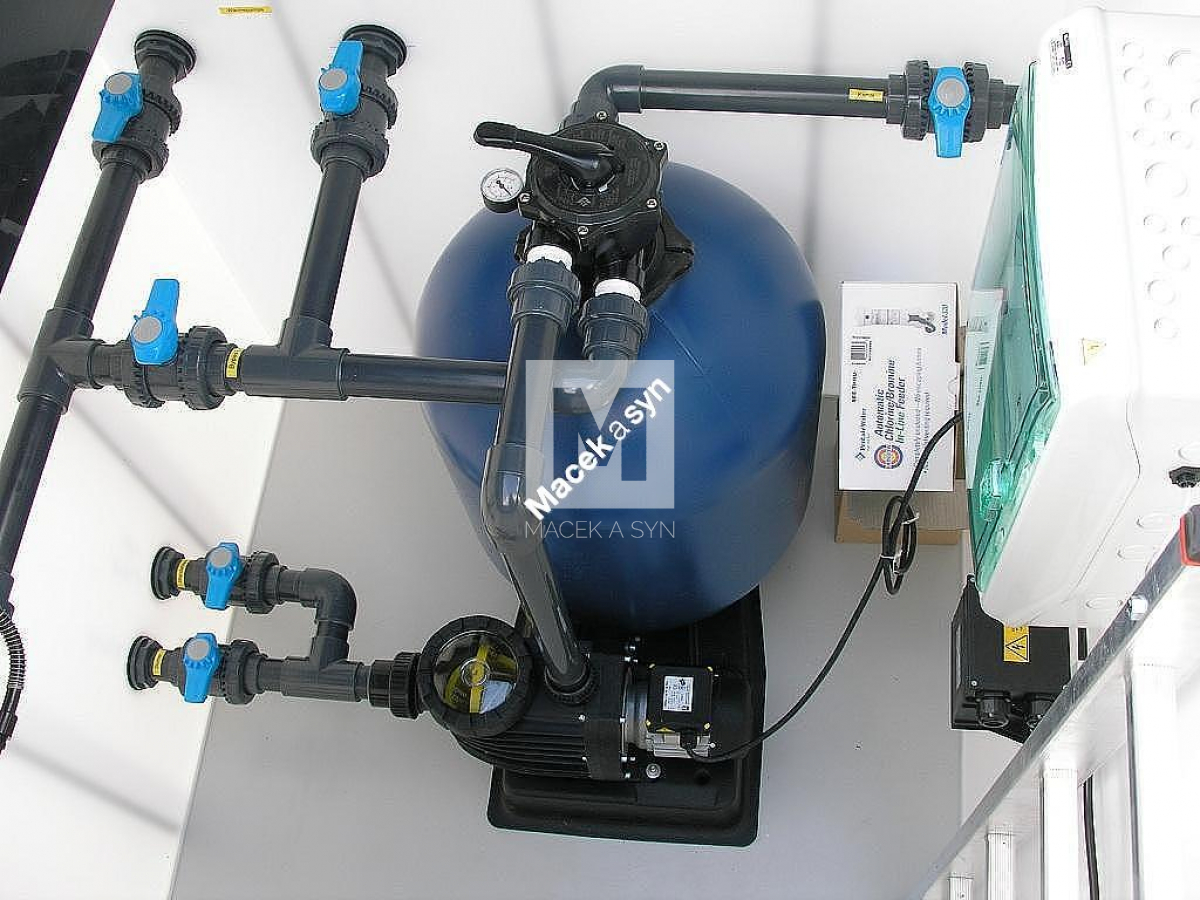

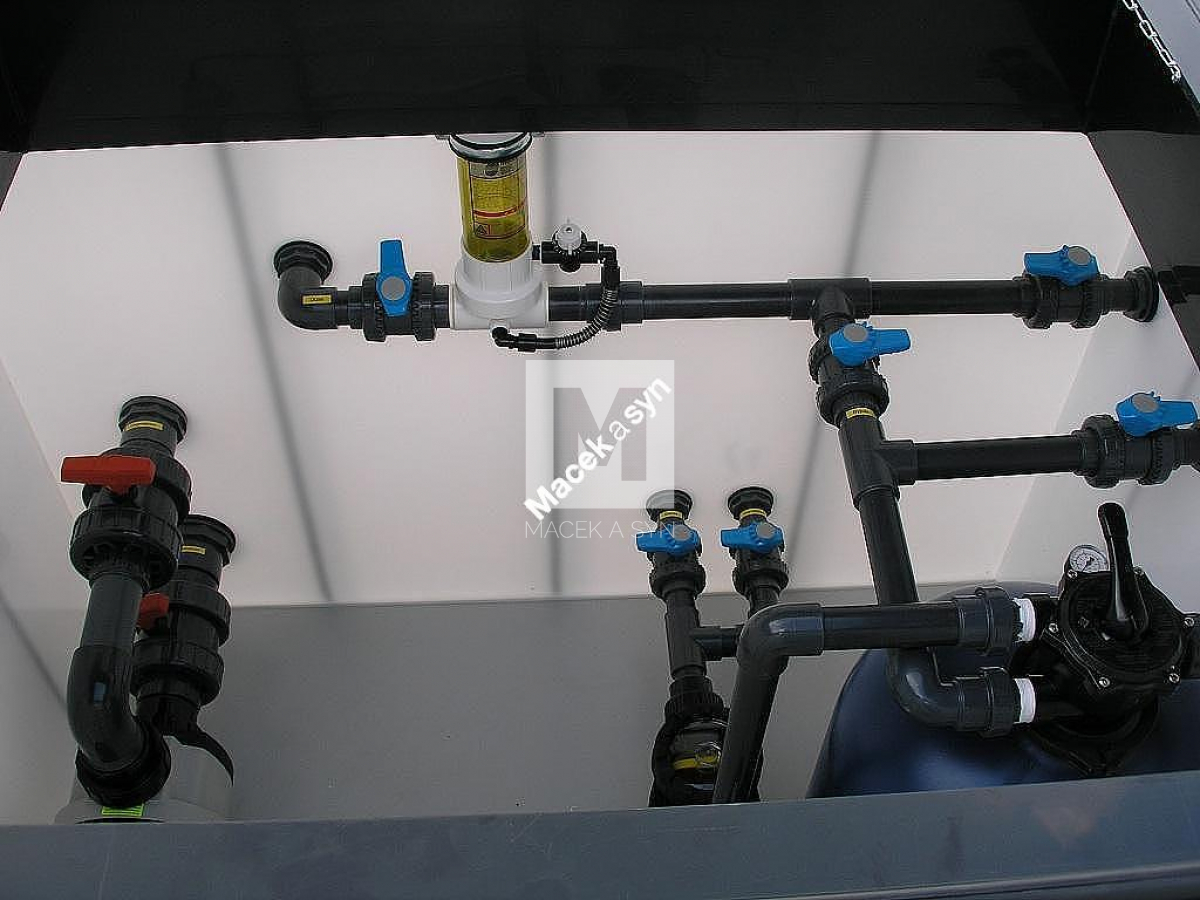

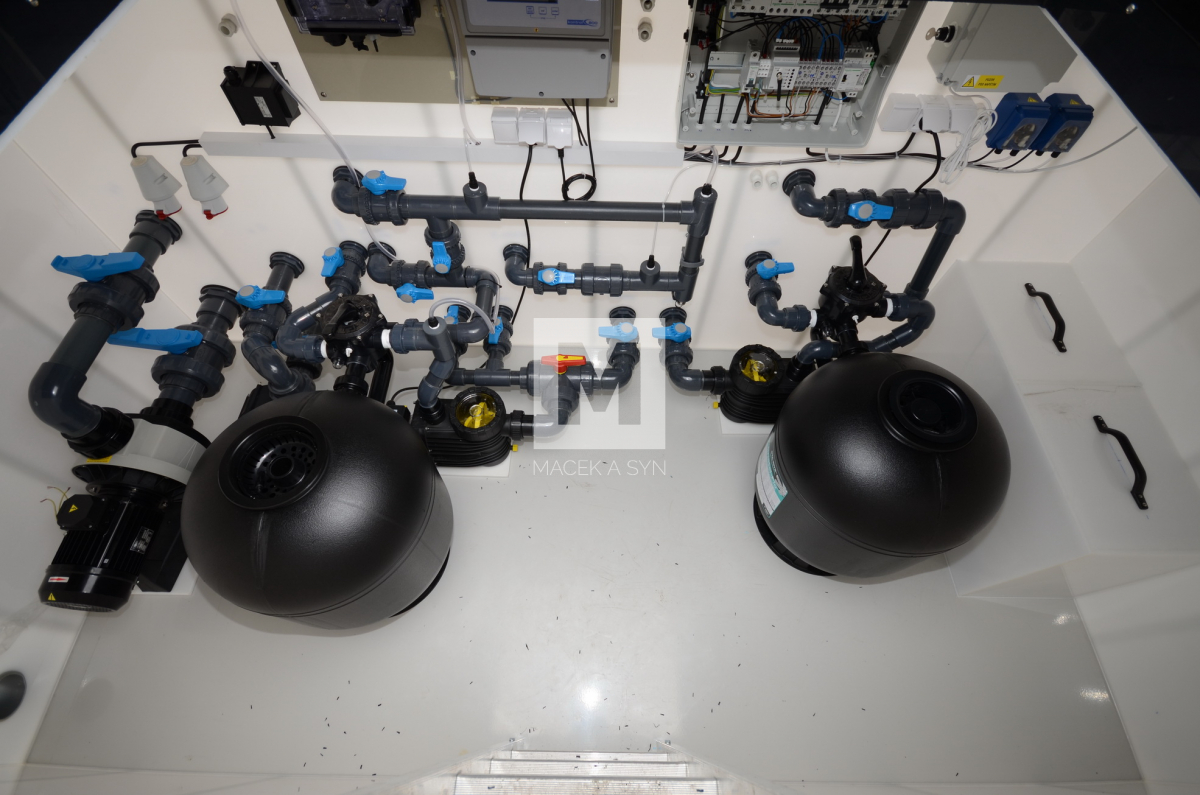

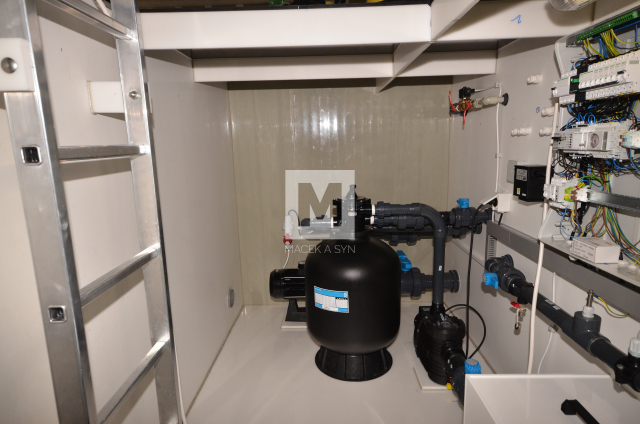

The shaft may contain automation for controlling filtration, safety transformer, heating, bottom drainage, chlorination, etc. Examples of shaft filling are for illustration only – its contents are not included in the price of the shaft!

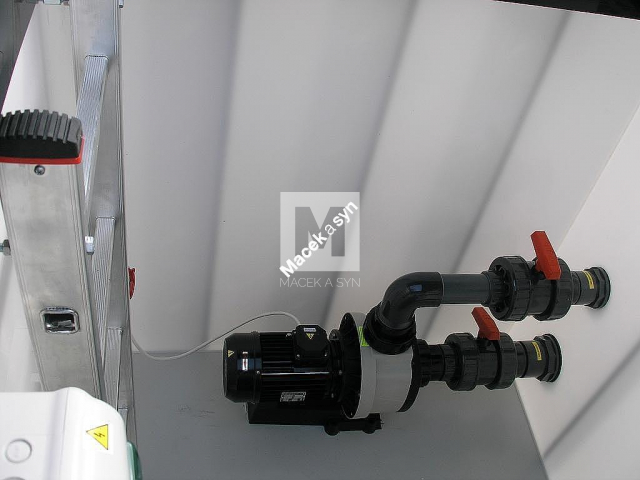

The shaft is equipped with an aluminum ladder.
SHAFT INSTALLATION - the shaft is installed into a trench on a concrete base of corresponding thickness reinforced with a steel rebar mesh, and so that the upper part of the shaft protrudes at least 5 cm above the surrounding terrain (to prevent flooding of the shaft during rain). Precise information can be found in the Installation Instructions file.
CONCRETING - the shaft must be concreted with moist concrete of the appropriate strength around its entire perimeter up to the top, including the ceiling.
COLOR OF THE LID: The filtration shaft is manufactured with a lid in the color RAL 7032 (stone gray). For an additional charge, you can order a lid in white, green and light blue. The delivery time for these colors is about 1 month.
WE RECOMMEND to purchase products in the Related products section (below on the page), which are needed e.g. for installing the power supply cable, ventilation, etc. In case of any questions when choosing a suitable product, do not hesitate to contact us at tel. +420 771 200 177. We will gladly assist you!
DIAGRAM AND DIMENSIONS OF THE SHAFT HERE.
