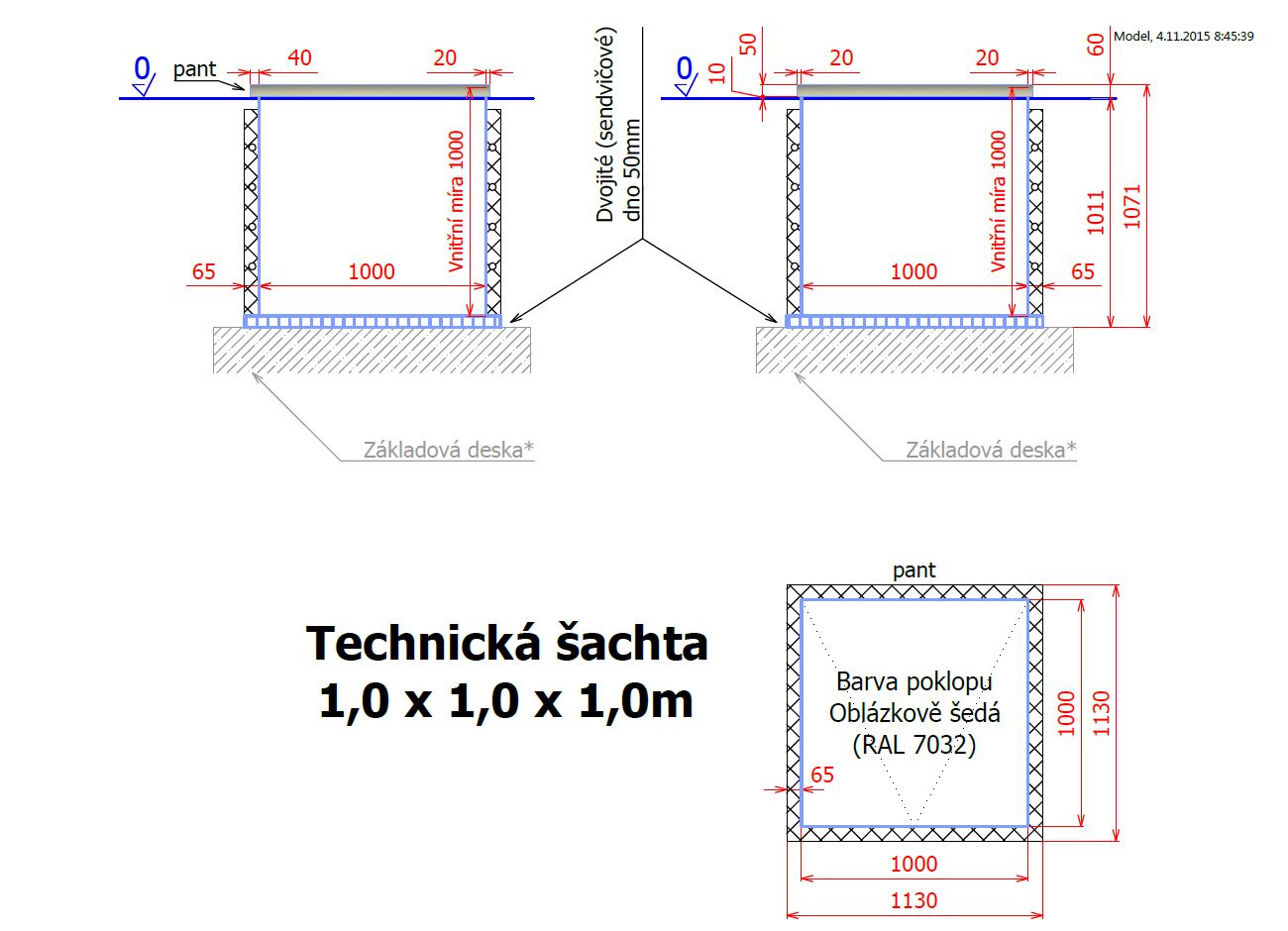

Filter shaft, low - 1 x 1 x 1m

• The shaft may contain automation for filtration control, a safety transformer, heating, bottom drainage, chlorination, etc.
• The shaft is made of 10 or 15 mm thick polypropylene. The shaft can be equipped with a 220 V outlet and a switch.
• The shaft lid (cover) is walkable, not movable.
• The shaft is waterproof; all penetrations must be made using waterproof bushings (not included in the price).

INSTALLATION OF THE SHAFT - the shaft is set into a trench on a concrete base 10 cm thick reinforced with steel mesh so that the upper part of the shaft protrudes at least 5 cm above the surrounding ground (to prevent flooding of the shaft during rainfall). Exact information can be found in the Installation Instructions document.

CONCRETING - the shaft must be concreted with moist concrete with a wall thickness of at least 15 cm around its entire perimeter up to the top.

LID COLOR: The filtration shaft is manufactured with a lid in the color RAL 7032 (stone gray). For an additional charge you can order with a lid in white, green and light blue. Lead time for these colors is about 1 month.

Examples of filling the anti-current shaft are for illustration only - contents are not included in the shaft price!

For an additional charge, a filtration shaft equipped with ventilation can be supplied.


WE RECOMMEND purchasing products in the Related Products section (below on the page), which are needed for example for installing the supply cable, ventilation, etc. If you have any questions when choosing the right product, please do not hesitate to contact us at tel. +420 771 200 177. We will be happy to help!
