Dosing station VA DOS EXACT - PH/Cl

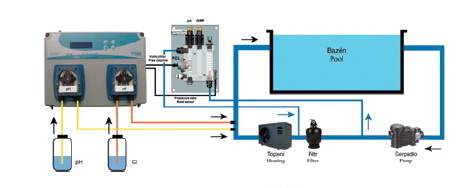

Easily adjustable device in a compact design with a 2-line display and full flow regulation, in which measuring probes are installed. Water suction for the measuring station should be placed between the pump and the sand filter with the dosing of chemicals to be placed on the discharge pipe after the pool heater. Thanks to precise chlorine dosing depending on direct measurement of free chlorine in pool water using an amperometric probe, this automatic dosing station is optimal for hotel pools as well as guesthouses, wellness, and whirlpools.

Automatic dosing station EXACT
pH – Measures and doses pH (pH probe 0.00–14.00 pH)
ORP – Measures Redox (ORP probe ±1 500 mV) - for surcharge
FCL – Measures free chlorine and doses chlorine (open amperometric probe 0.00–5.00 ppm)
TMP – Measures temperature (temperature probe 0–99 °C) – PT100 on order

Measuring cell:
Two inputs for probes to monitor chemical products
Two relays with dry contact
Inlet and outlet tube 8 x 12 mm
Pressure 10 bars
Temperature 60 °C
Automatic calibration using calibration solutions
Temperature compensation: manual/automatic (temperature probe on order, not part of the base station)
Dosing mode: ON/OFF, OFF, PROPORTIONAL (slowing dosing as approaching the set value)
Dosing tubing 6x10 mm

Technical parameters
