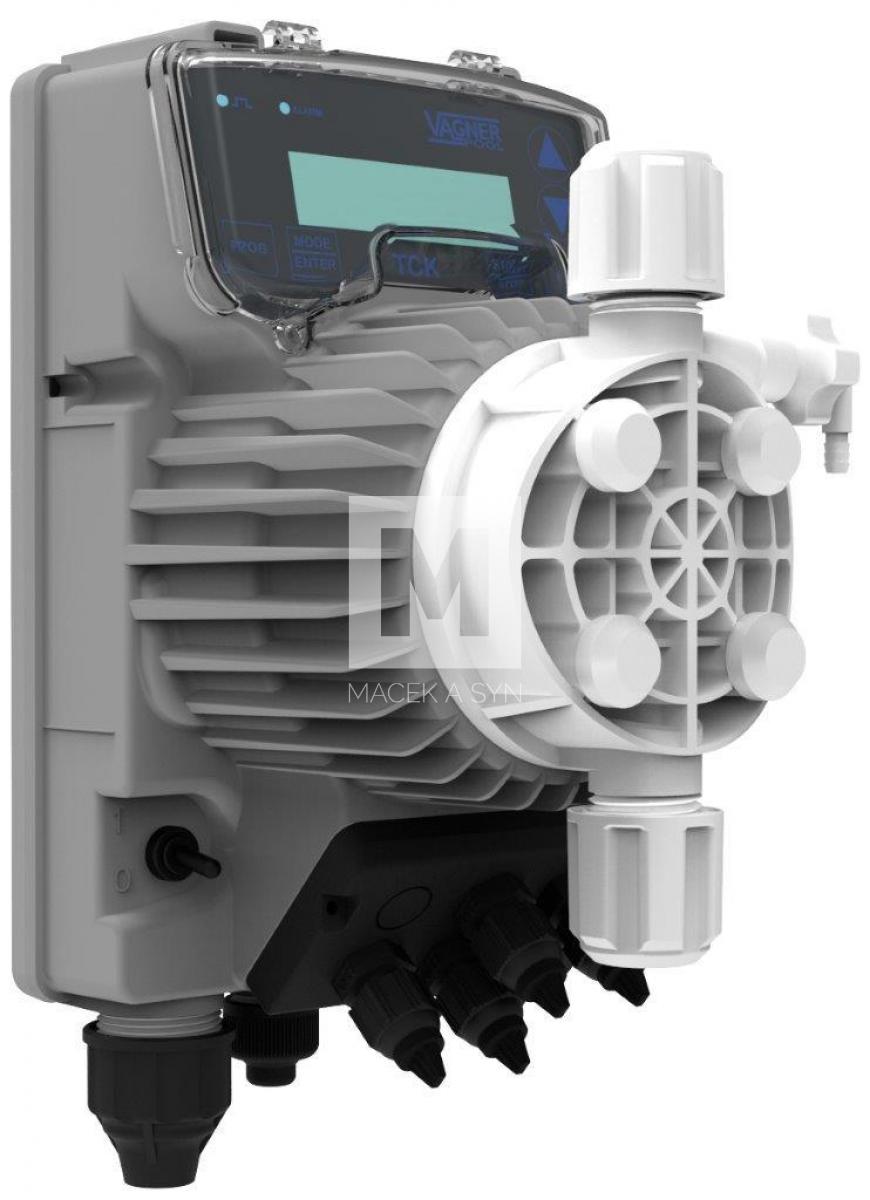

Dosing pump TEKNA 603 - TCK
Electromagnetic dosing pump
Code: 920602N
To order
We dispatch: on request (ask for availability)
475,06 €
386,23 € exc. VAT
386,23 € exc. VAT
.jpg)
Digital diaphragm dosing pump with continuous or timed dosing (ability to set up to 10 programs) - suitable for timed dosing of flocculant, IP65 enclosure. Ability to dose any chemical. Level monitoring, On-Off input signal.
Dosing method:
- ON/OFF
- Timed “weekly” (D:HH:MM)
Technical data
| Performance: | 8 l/h at 2 bar |
| Max. frequency: | 160 strokes/min |
| Stroke capacity: | 0.63 cc/stroke |
| Connections: | 4/6 mm |
| Power consumption: | 12.2 W |
| Power supply: | 230 V, AC |
| Dosing method: | ON/OFF |
| Ingress protection: | IP65 |
| Performance: | 4-8 l/h |

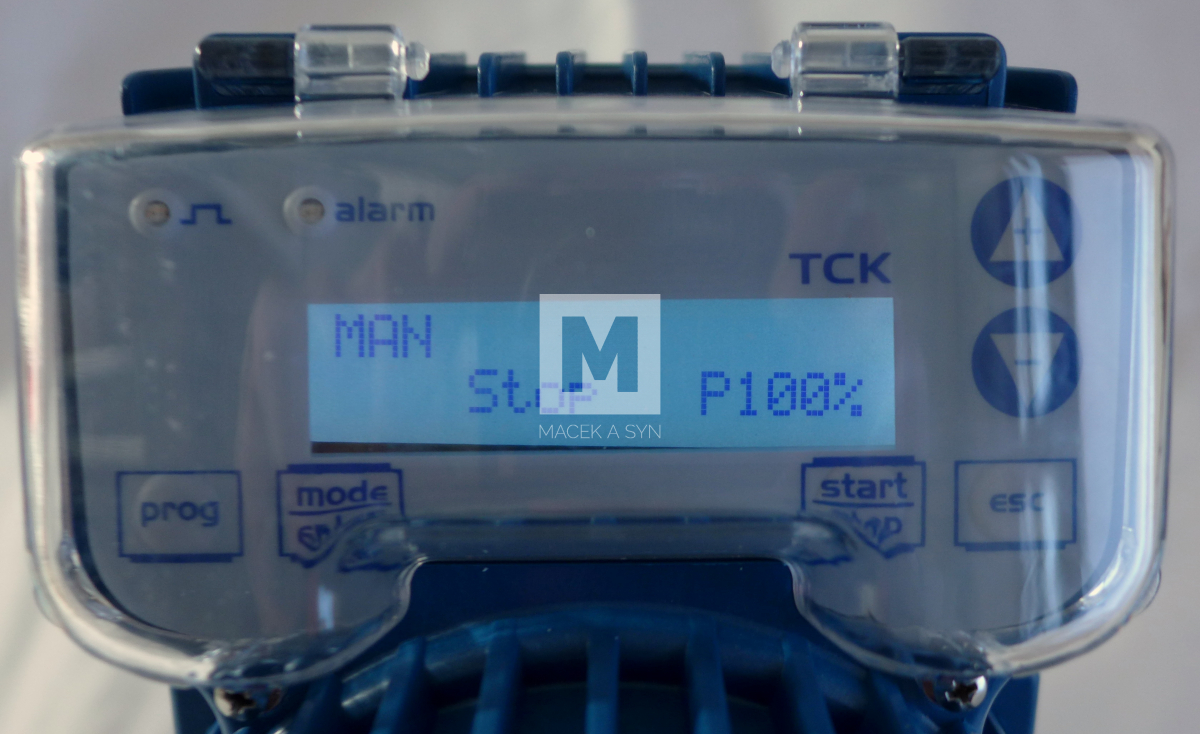

| Digital display: | Yes |
We recommend installing this station below the water level to prevent hydraulic siphoning of the chemical through the magnetic pump.
