Dosing station VA DOS BASIC - CHLOR - pH + ORP
Dosing station; Pump flow: 0.5 - 1.5 L/h; Ingress protection: IP65; Measured parameters: pH and ORP; Digital display: Yes; Expandability: Yes; Power supply: 230 V AC
979,88 € exc. VAT

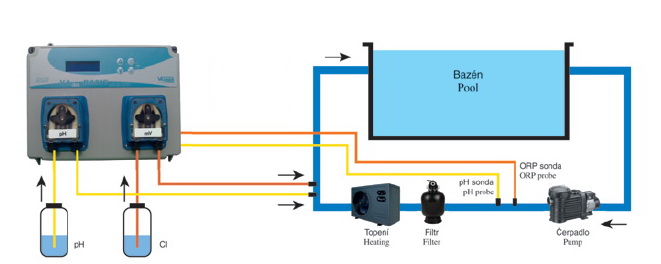

Simple and affordable VA DOS automatic station line, designed for family pools with both fresh and salt water. Easy-to-set-up multi-parameter device in a compact design with a 2-line display, measuring probes with threaded fittings for easy installation into existing piping systems. Water sampling for the measuring station should be placed between the pump and the sand filter, with chemical dosing required to be placed on the discharge pipe after the pool heater.
Automatics excel in easy installation and operation, precise continuous measurement thanks to the pH, or ORP probe and the possibility of calibrating them using calibration solutions. Another advantage is replacing a flow sensor with a voltage input (230 V), which in "FLOW ON" mode powers the dosing pump. It ensures chemical dosing only when the filtration pump is running.
Technical data:
| Power supply: | 100-240 VAC, 50/60 Hz, 12/18 W |
| Switch: | on the side of the cabinet |
| Pump status: | pause - run |
| Pump flow: | 0.4-1.5 L/h |
| Maximum back pressure: | 1.5 bar |
| Pump relay warning: | 10 A, 250 V |
| Voltage signal - pump: | 100-240 VAC |
| 2x level probe: | pH, Cl |
| Dimensions: | 286 x 234 x 108 |
| Enclosure rating: | IP 65 |
| pH and Cl: | ON/OFF, PROPORTIONAL dosing |
